BUSBAR TRUNKING SYSTEM (BBT)
Brand: EAE
Country of Origin: Turkey
25A-6300A
E-LINE MV BUSBAR (950A-5700A)
Operating voltage: 12kV (950A-2700A)
24 kV (1500A-5700A)
Standard : IEC 62271-200; IEC 61439-6
Conductors: 3 conductors / PE (Body)
Insulation: A special composite material formed by a
mixture of specially selected sand, calcite and epoxy resin,
suitable for temperature change and thermal expansion. High protection against external impacts.

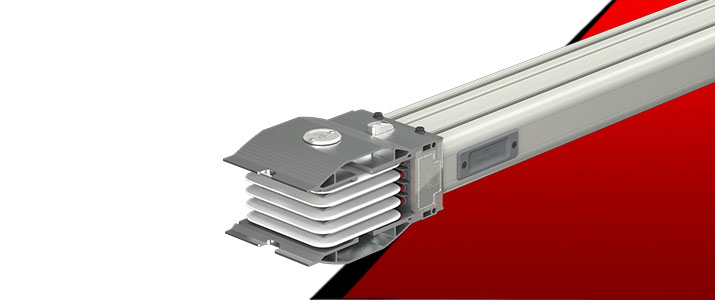

E-LINE CCR BUSBAR (600A-6300A)
Operating voltage: 1000 V
Insulation voltage: 1000 V
Standard : IEC 61439-1/6
Conductor Configuration: 3W/4W/4.5W/5W
Protection Degree: IP68
Insulation: A superior composite material that is a mixture of specially
selected silica and calcite mixed with an electrical grade epoxy resin.
Housing: Aluminum body over the IP68
“DUROCOMP” composite material.

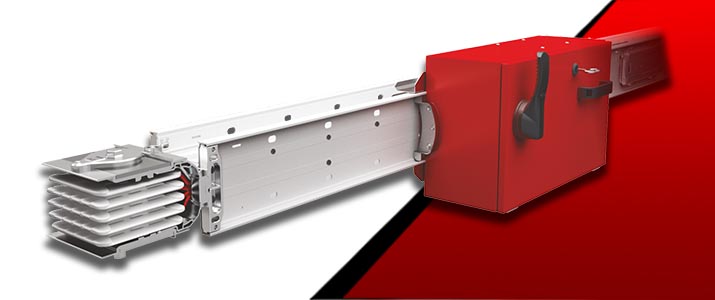

E-LINE KX BUSBAR (400A-6300A)
Operating voltage: 1000 V
Insulation voltage: 1000 V
Standard : IEC 61439-1/6, TS EN 61439-1/6
Conductor Configuration: 4W/4.5W/5W
Protection Degree: IP55
Insulation: Polyester Film (Mylar) insulation
and tin plated at the joint.
Housing: 2,50mm extruded aluminum, RAL-7038-Electrostatic painted.
E-LINE KD BUSBAR (160A-1000A)
Operating voltage: 1000 V
Insulation voltage: 1000 V
Standard : IEC 61439-1/6, TS EN 61439-1/6
Conductor Configuration: 3W/4W/4.5W/5W
Protection Degree: IP23D
Insulation: Polyester Film (Mylar) insulation
Housing: thermal processed, extruded aluminium, RAL7012-Electrostatic painted.
Specially designed for Data Centre.
E-LINE KO BUSBAR (160A-800A)
Operating voltage: 1000 V
Insulation voltage: 1000 V
Standard : IEC 61439-1/6, TS EN 61439-1/-6
Conductor Configuration: 4W/4.5W/5W
Protection Degree: IP55
Housing: 1 mm Galvanized Steel.
E-LINE MK BUSBAR (100A-225A)
Operating voltage: 690 V
Insulation voltage: 690 V
Standard : IEC 61439-1/6, TS EN 61439-1/-6
Conductor Configuration: 4W/5W
Protection Degree: IP55
Housing: .6 mm Galvanized Steel.

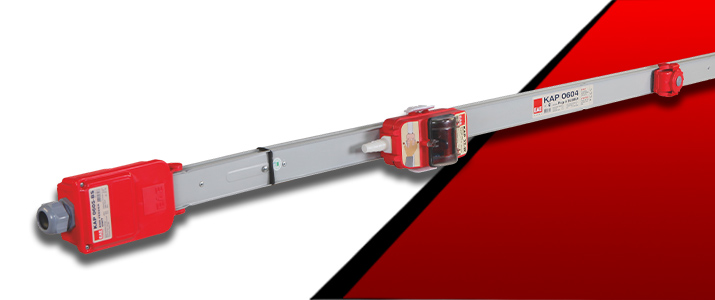

E-LINE KAP BUSBAR (40A-63A)
Operating voltage: 690 V
Insulation voltage: 690 V
Standard : IEC 61439-1/6, TS EN 61439-1/-6
Conductor Configuration: 4W/5W
Protection Degree: IP55
Housing: .5 mm Galvanized Steel.
E-LINE KY-S BUSBAR (25A)
Operating voltage: 400 V
Insulation voltage: 690 V
Standard : IEC 61439-1/6, TS EN 61439-1/-6
Conductor Configuration: 4W/5W/6W
Protection Degree: IP55
Housing: .5 mm Galvanized Sheet Metal.

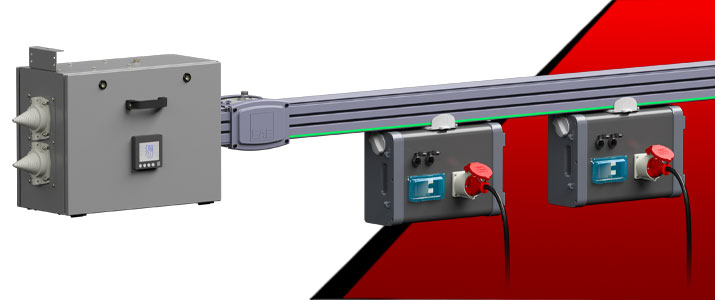

E-LINE TROLLEY BUSBAR (35A-250A) (TBX-E, TBX-S, TBE, TBS, TB)
Operating voltage: 690 V
Standard : IEC 61439-1/6, TS EN 61439-1/-6
Conductor Configuration: 4W/5W
Protection Degree: Standard IP24, Gasket IP44
Housing: Housing is made of C-PVC and plastic
accessories are made of PA6 raw material.
